This guide breaks down how the AI Agent Node operates inside Captivation Hub Agent Studio and how each setting shapes the way your agent thinks and responds. You'll learn how to configure the node correctly, when to use it, and how to make it perform reliably for real customer interactions.
What the AI Agent Node Does in Agent Studio
The AI Agent Node is the central building block in Agent Studio that decides how an AI agent reasons, replies, and acts. Think of it as the brain of the agent — it interprets incoming messages, identifies intent, and chooses the next move, whether that's generating a response, calling a tool, or routing the conversation somewhere else.
Prompt
The Prompt is where you set the agent's personality, tone, and operating rules. It defines the behavior the agent will follow during execution and ensures responses stay consistent. For example, a support agent prompt might tell the agent to handle pricing questions by pulling from the knowledge base — so when someone asks "What's included in your premium plan?" the agent recognizes it as a pricing inquiry and responds correctly.
Model
The model you select determines how well the AI Agent Node understands input and crafts replies. Higher-capability models like GPT-5 or GPT-4.1 deliver stronger reasoning, while Mini and Nano models are faster and lighter. GPT-4o sits in the middle with low latency. This choice directly affects intent recognition — for instance, when someone says "I'm exploring options for my business," a stronger model can flag this as a potential lead, while a lightweight model might respond more generically.
Mode
Mode controls whether the AI Agent Node interacts with users or runs silently in the background:
- Conversational Mode — for direct user interactions
- Task Based Mode — for silent execution
Pick based on whether the agent needs to talk to people or just perform actions behind the scenes.
Tools
Tools extend what the AI Agent Node can do beyond plain responses. Each tool has a specific job:
- Router — directs the agent flow by routing users to different paths (sales, support, fallback) based on intent or agent decisions. Use this when your agent needs branching logic.
- Search Knowledge Base — lets the agent pull from your configured knowledge base so answers stay accurate and grounded in your data. Great for FAQs, product details, pricing, or support questions.
- Search the Web — fetches real-time info from the internet for queries that need fresh or external data, like market trends or current events.
Variables
Variables let the agent capture and use data during a conversation — things like the user's name, email, or what they're asking about. This makes interactions feel personal and context-aware instead of generic.

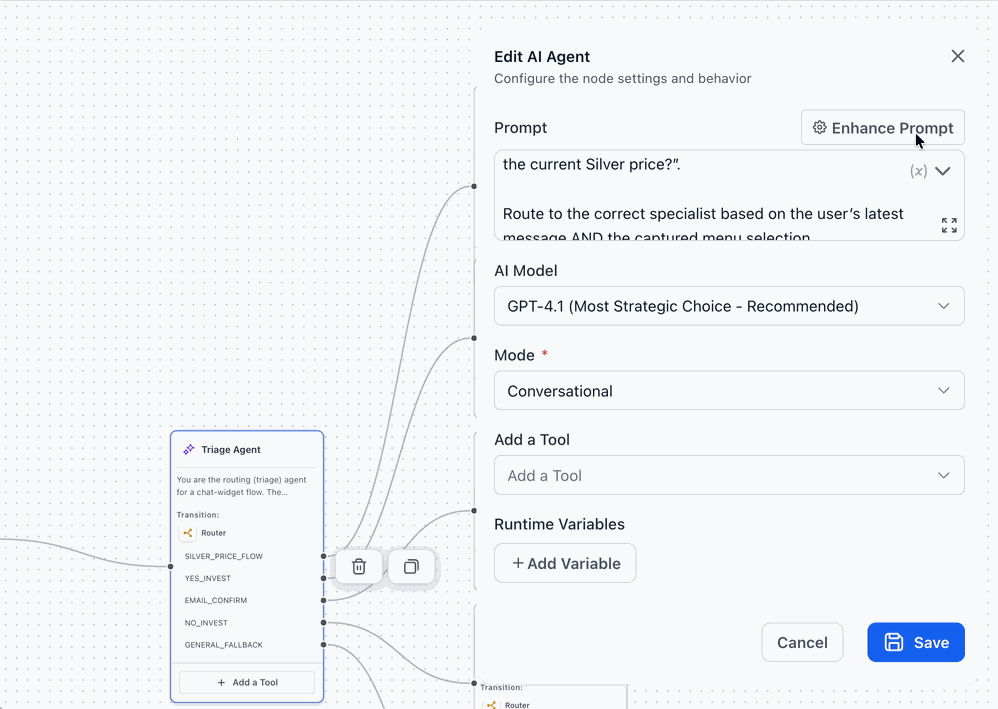

Prompt Enhancement
The Enhance Prompt feature rewrites your prompt into a clearer, more structured version that guides the AI Agent more effectively. Once enhanced, you can review the suggestion and either accept it or stick with your original wording — full control stays with you.
Step-by-Step: Configuring the AI Agent Node

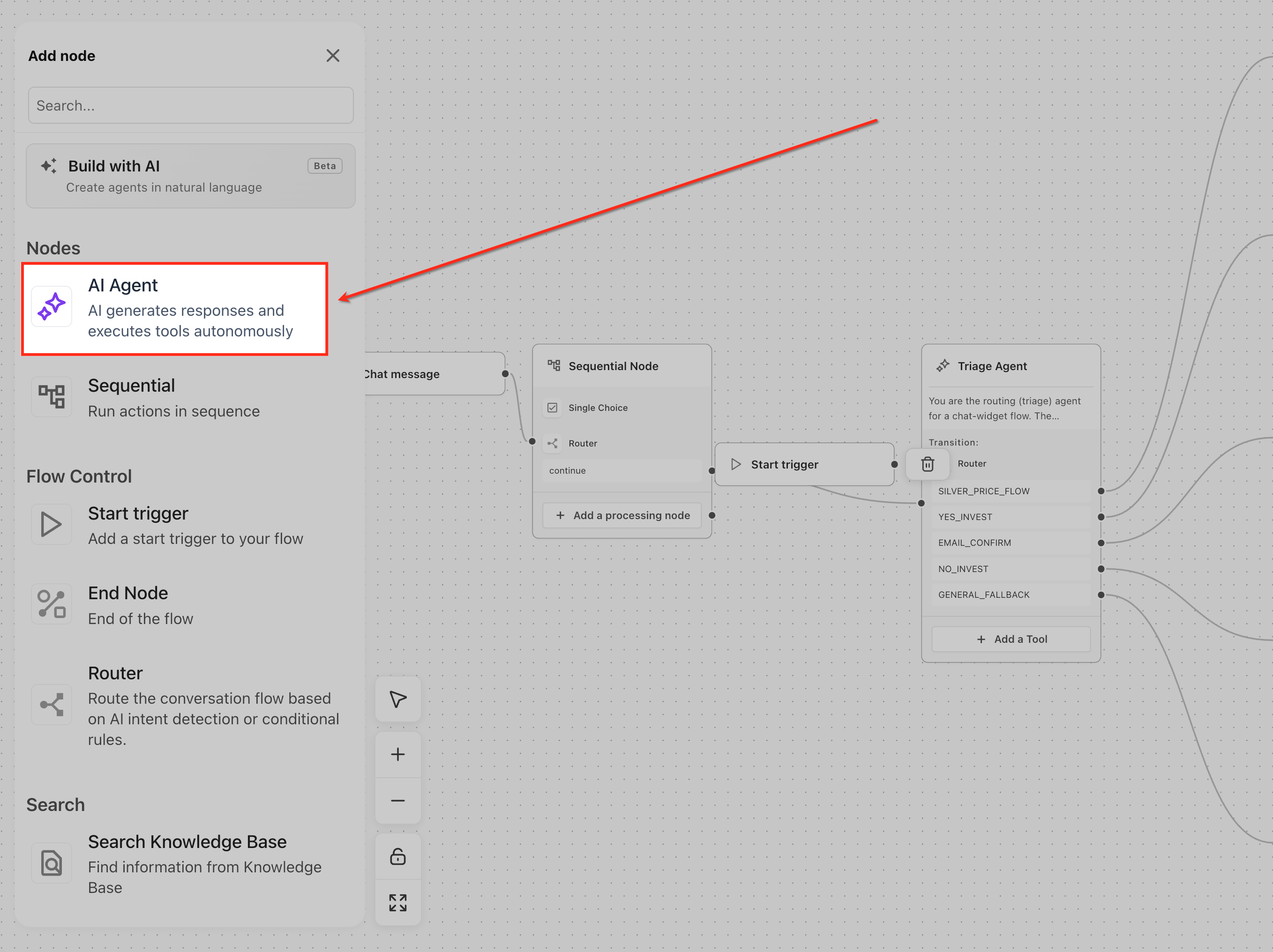

Step 1 — Add the Node to Your Flow
From the Agent Studio canvas, drag in an AI Agent Node and place it where you want the AI brain to sit in the flow.

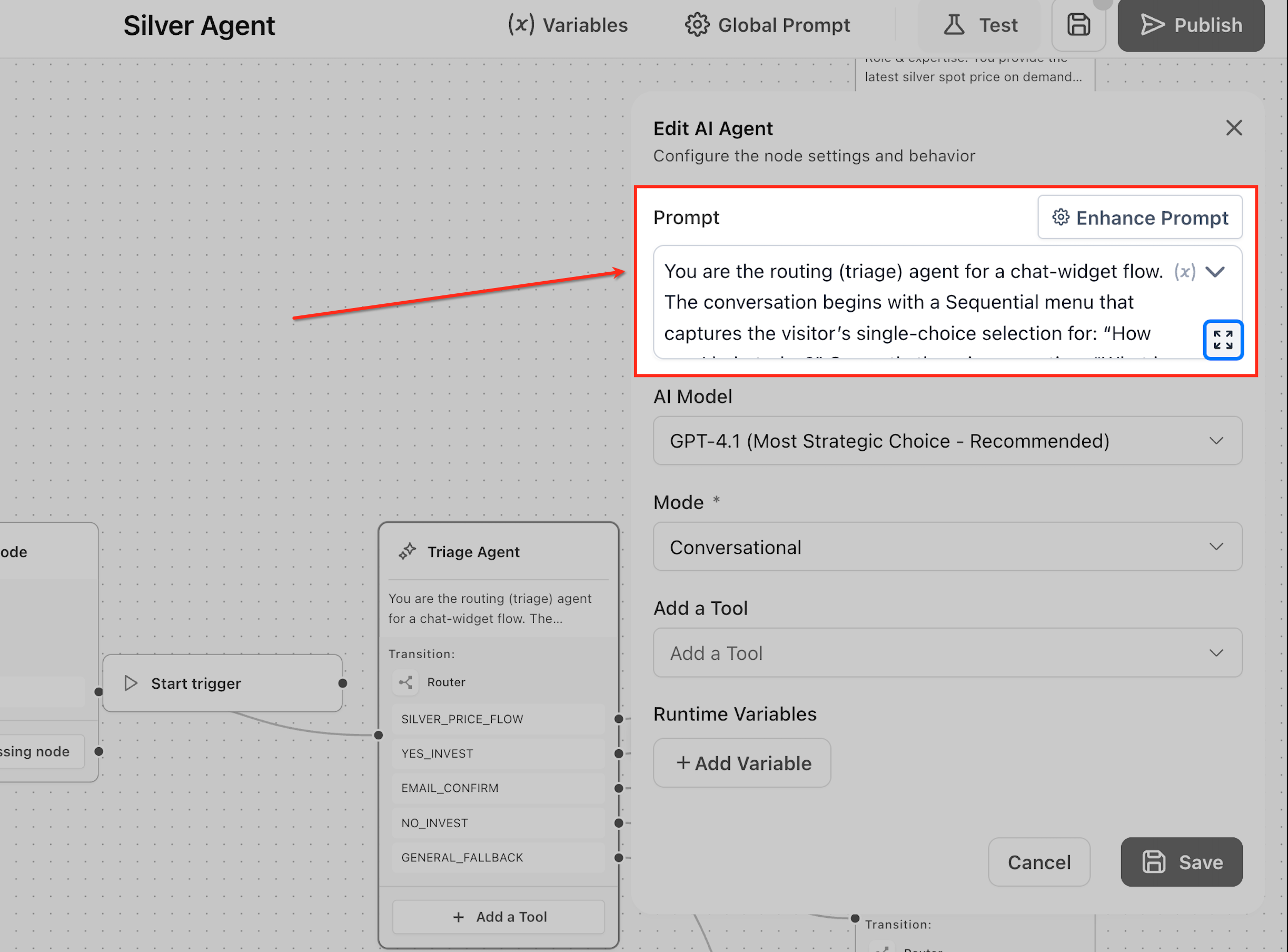

Step 2 — Write the Prompt
Define the agent's role, tone, and when it should reach for tools. The prompt is the blueprint for how the agent behaves at runtime.

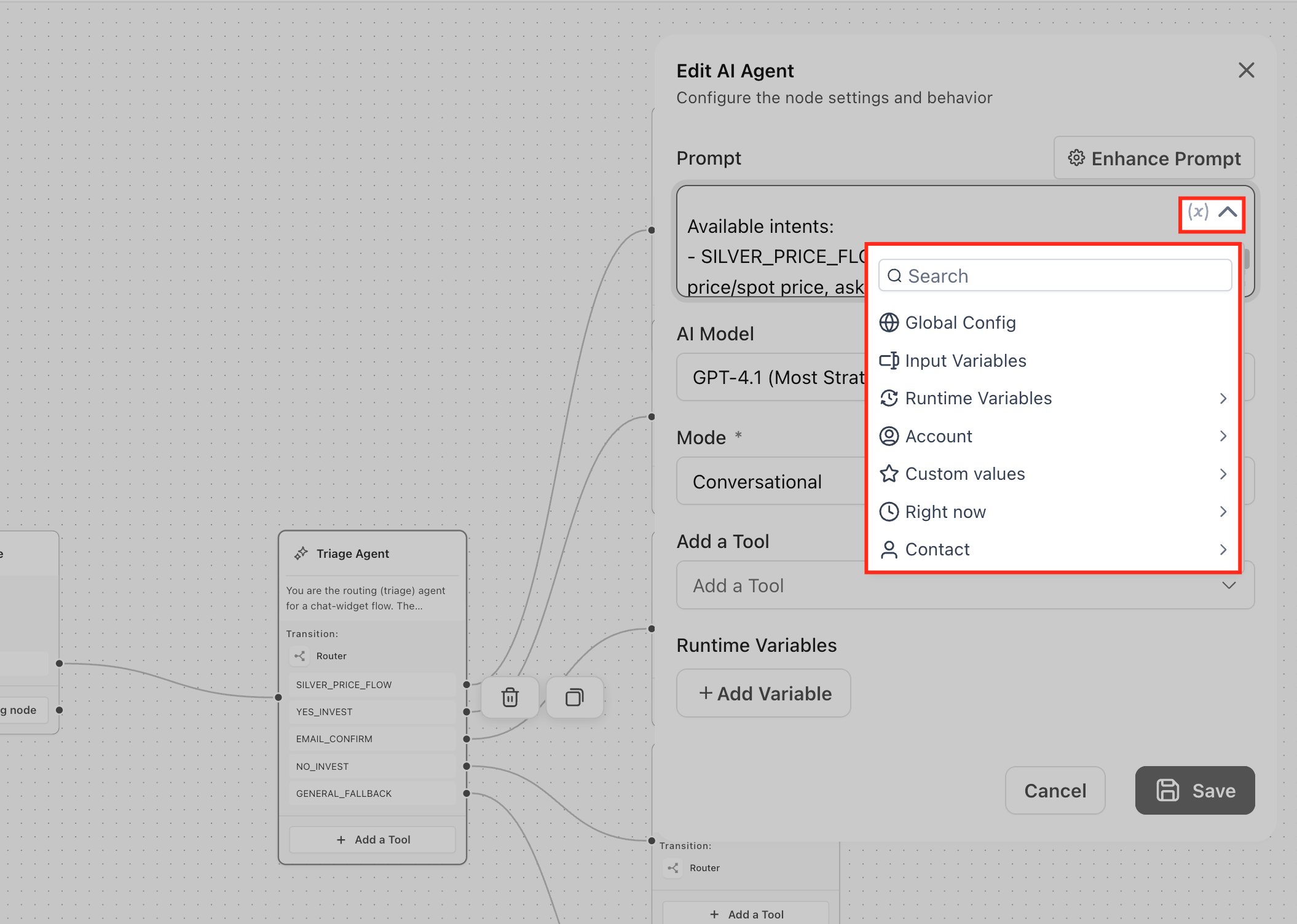

Using Variables in the Prompt
You can drop dynamic variables into your prompt with the {} icon in the prompt field. The agent then swaps them out for real-time data during execution. For example, putting {{contact.name}} into a prompt like "Greet the user by name and help them with their request" lets the agent reply with "Hi Rahul, how can I help you today?" when the contact's name is Rahul.
Used well, variables let the agent personalize replies, reference real-time data, and keep context flowing across the agent's steps. They're especially powerful when working with user-specific details, time-based context, or info handed off from upstream nodes — but use them thoughtfully so the prompt stays clean.

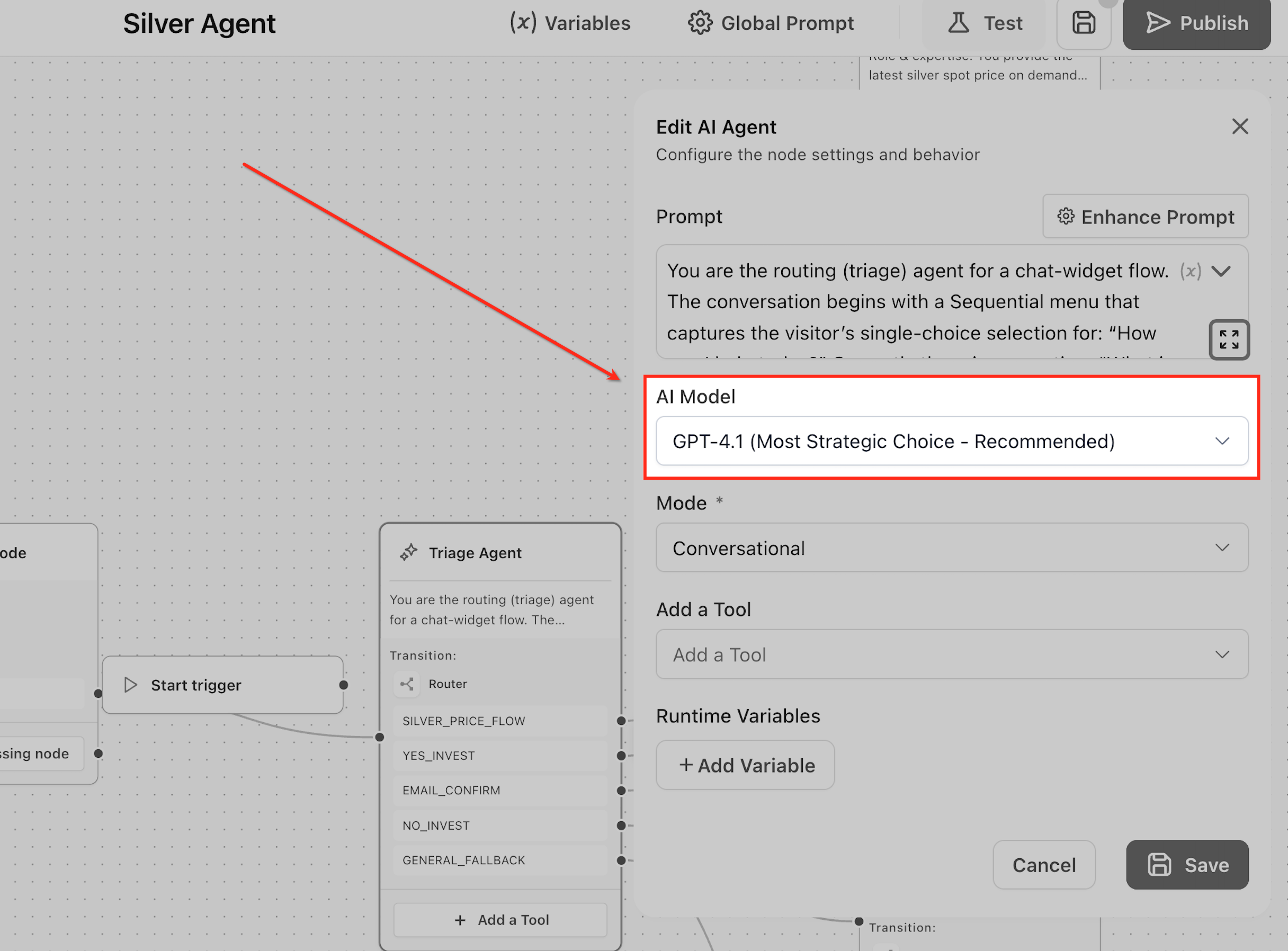

Step 3 — Pick the Model
Choose the model powering the agent. Heavier models for complex reasoning, lighter ones for speed.

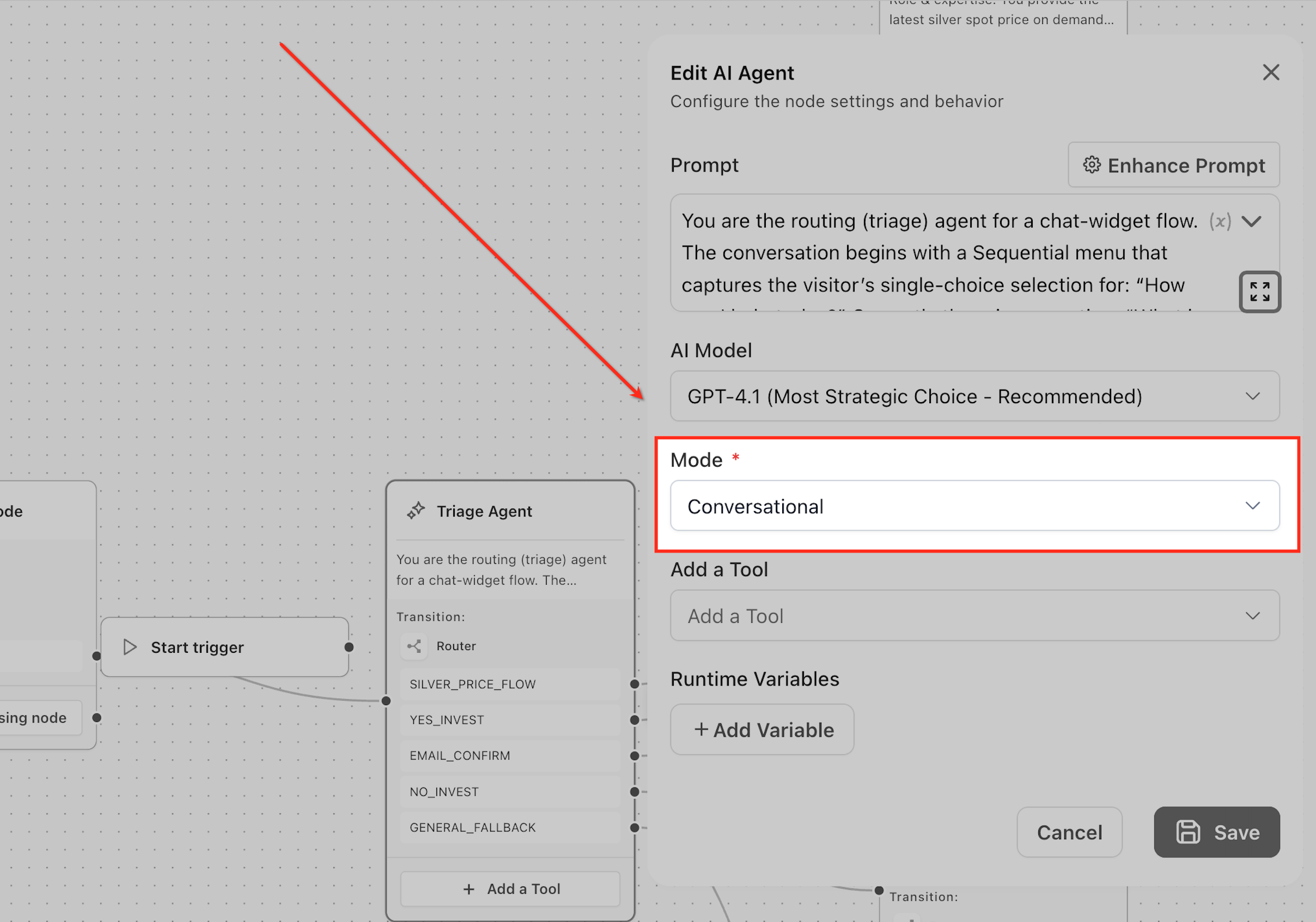

Step 4 — Choose the Mode
Select Conversational Mode if the agent will talk to users, or Task Based Mode if it should run quietly in the background.

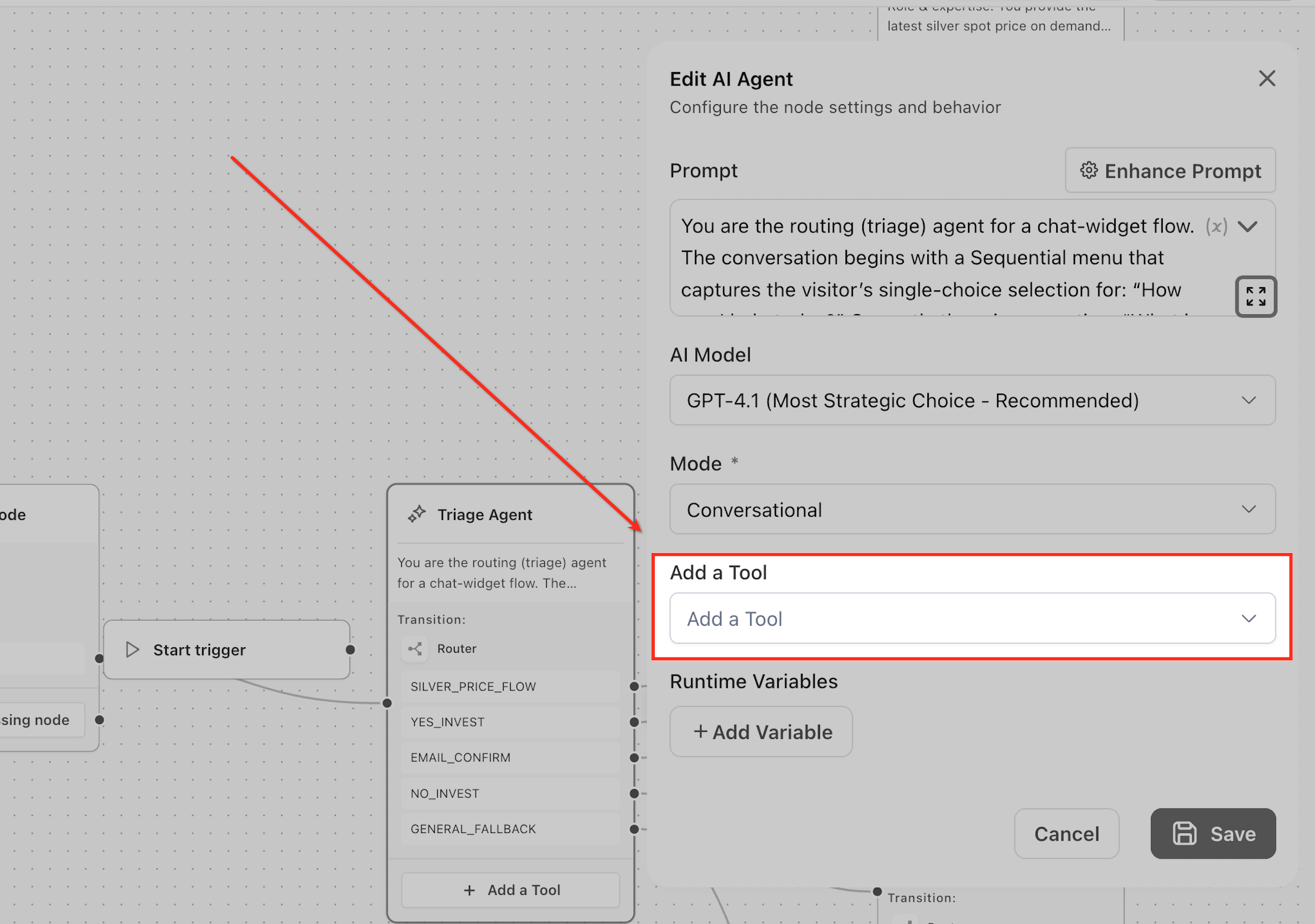

Step 5 — Add Tools
Attach the tools your agent needs — Router for branching, Knowledge Base for accurate answers, Web Search for real-time info.

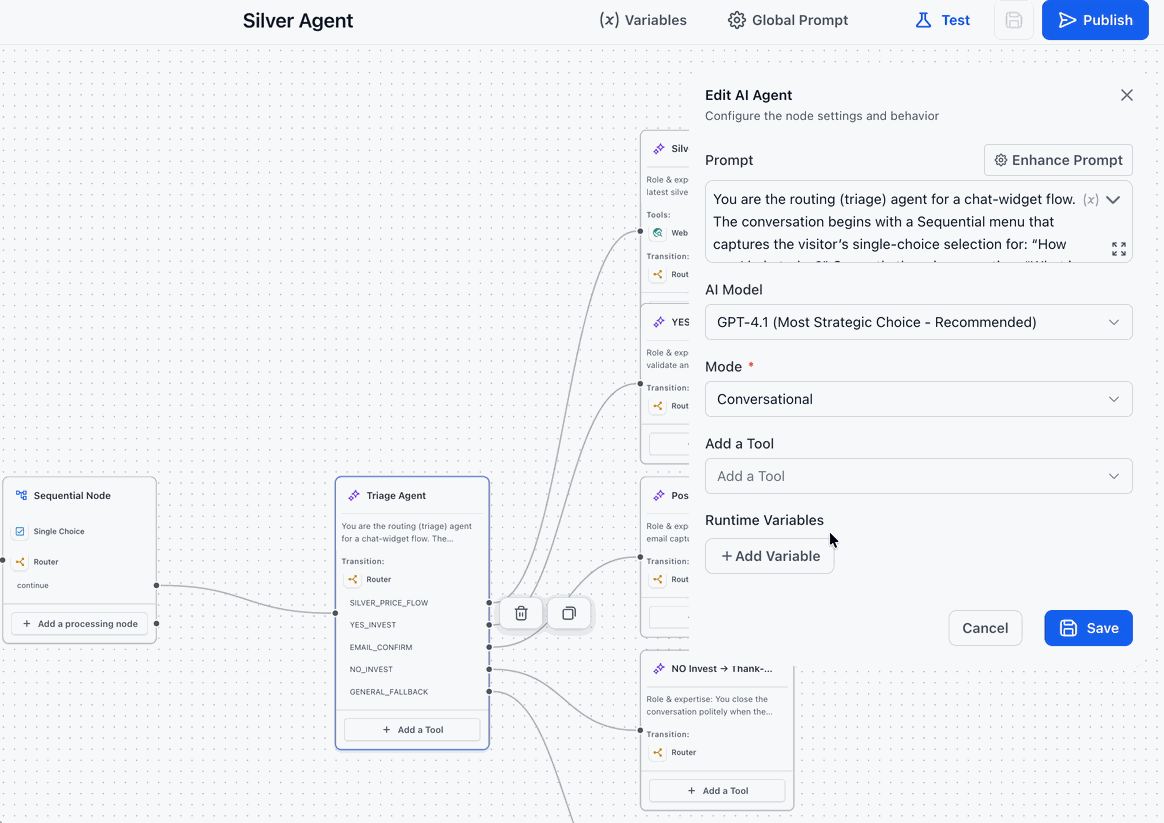

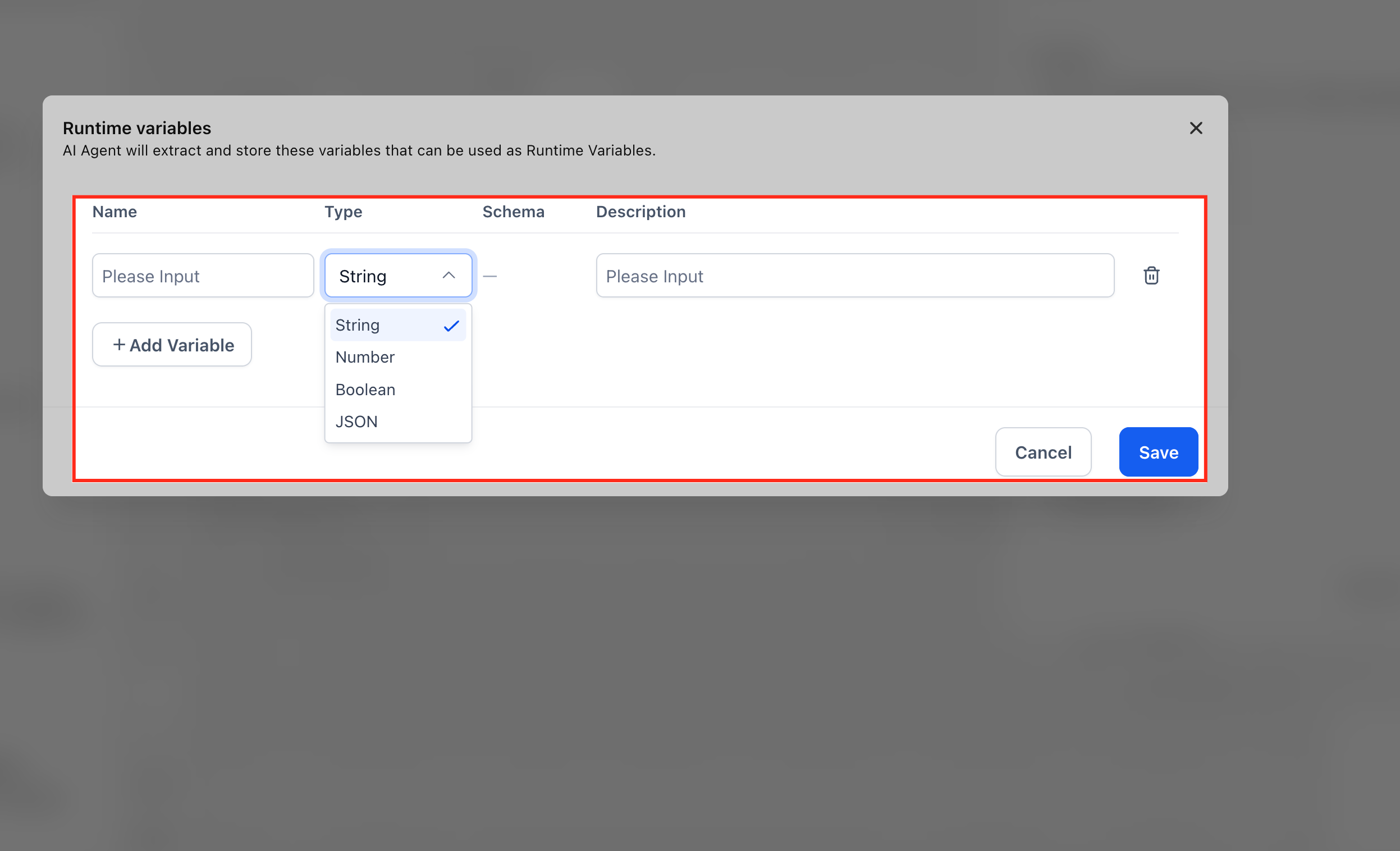

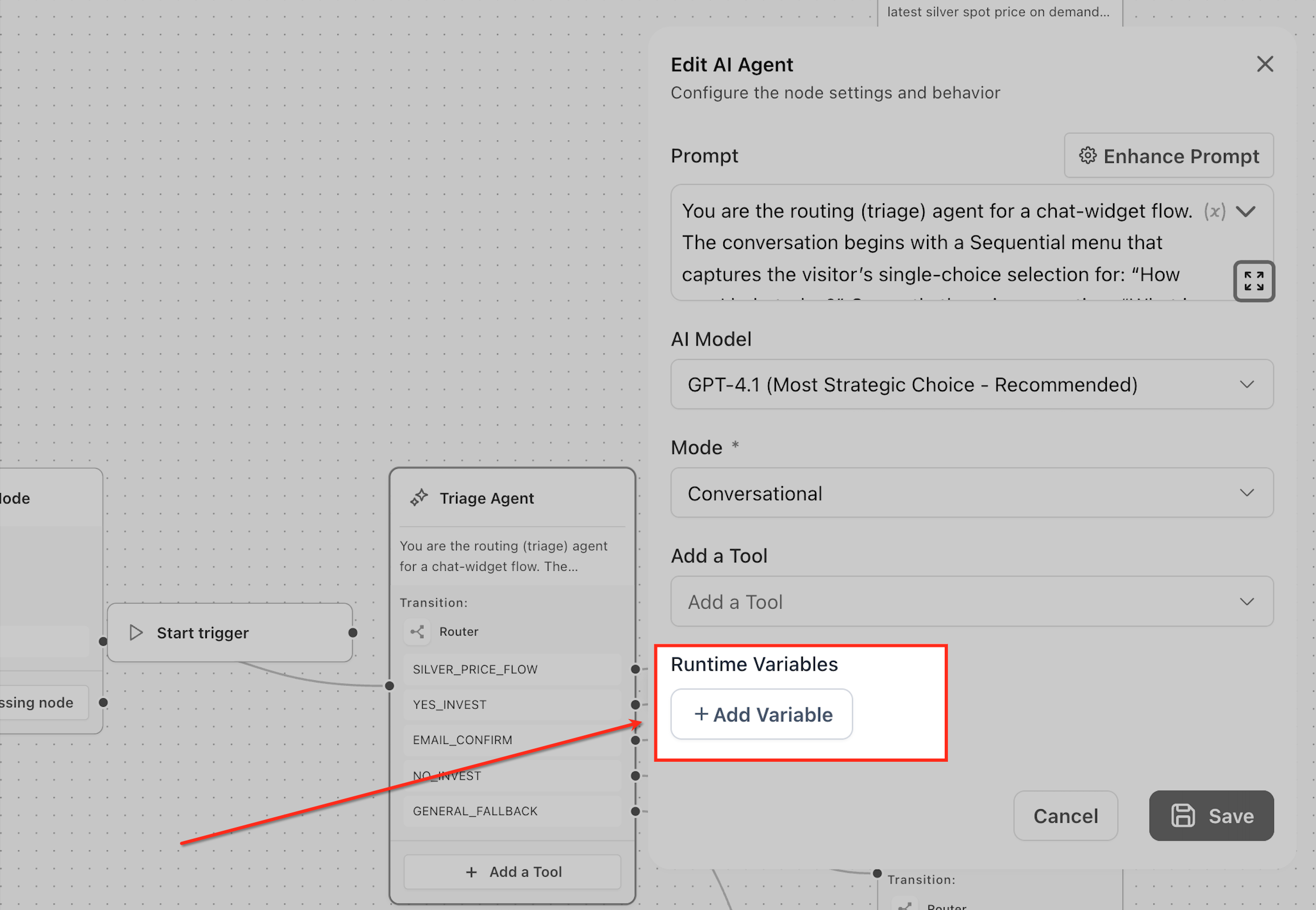

Step 6 — Define Runtime Variables
Create variables to capture key data during the run — things like name, email, or specific requirements. This data can flow into later steps of your agent.
The agent uses each variable's Name and Description to know what to look for in the conversation and pulls it out automatically.
For each variable, you'll set:
- Name — the identifier for the captured data (e.g.,
user_name,email,requirement) - Type — the data format:
- String → text values like name, email, or queries
- Number → numeric values like budget or quantity
- Boolean → true/false values like interested: yes/no
- JSON → structured data for more complex captures
- Description — a clear instruction telling the agent what to extract
Step 7 — Connect the Node in the Flow
Make sure the AI Agent Node is wired to the next step in your flow so its output — whether a response, an action, or extracted data — gets handed off cleanly for the next node to use.
Frequently Asked Questions
Q: How does the AI Agent decide whether to respond directly or use a tool?
It looks at the prompt instructions, the tools you've made available, and the context of what the user just said. The prompt acts as the main guide (e.g., "use the knowledge base for pricing"), and the agent only reaches for a tool when it actually needs one. So if a user asks "What are your latest pricing plans?" the agent might give a general answer alone — but with a Knowledge Base tool attached, it'll pull the accurate, current info.
Q: Can one AI Agent Node handle multiple goals at once, or should each node be focused?
Focused works best. Stuffing too many responsibilities into one node tends to muddy the results — a single node trying to handle both support and sales often delivers inconsistent answers. Splitting those into dedicated nodes keeps each one sharp and reliable.
Q: How can I tell if my AI Agent Node is actually working well?
Watch a few things: response quality, whether it picks the right tool at the right time, how accurately it extracts data, and whether it stays consistent across conversations. In a lead qualification setup, for example, a healthy agent should ask the right questions and capture clean user details every time.
Q: How do I keep the AI Agent within boundaries?
You shape its limits through the prompt, the tools you give it, and the variables you define. The prompt sets behavioral rules, tools control what actions are even possible, and variables decide what data gets captured. For instance, attaching only a Knowledge Base tool blocks the agent from taking CRM actions, while clear prompt instructions keep it inside its lane.
